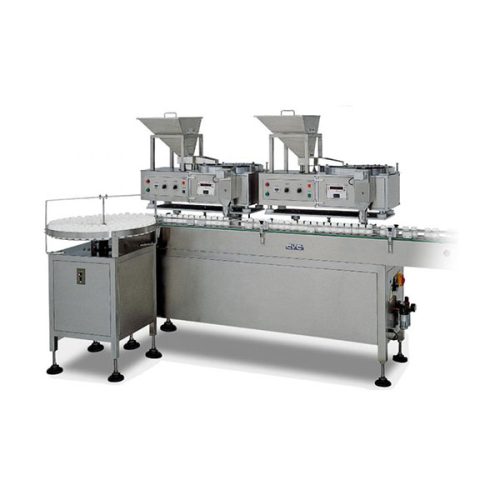

Model CVC1000, Electronic Tablet/Capsule Counters
April 23, 2021Model CVC202, Electronic Tablet/Capsule Counters
The CVC202 and CVC1000 Electronic Counters are economically designed for semi-automatic or fully automatic counting of tablets, soft gels, and capsules into bottles. The 202 Counter is designed for semi-automatic table top counting. The 1000 is an integrated machine including single or dual 202 heads mounted over an inline conveyor for fully automatic counting. Both machines operate using a simple and reliable rotary disc and sensor design for mid to high speed counting applications.
- Built to cGMP Standards
- Stainless Steel Construction
- Compact Design
- Quick & Easy Change Over
Request Product Updates
Categories: Electronic Tablet/Capsule Counters, Nutraceutical and Pharmaceutical Packaging
Tag: CVC
Standard Features
-
- Stainless Steel Construction
- Dust Accumulation Ports
- Translucent Product Mode
- Counting Speeds (Single Head):
- -Tablet: Up to 1800 pieces per minute
- -Capsule: Up to 1300 pieces per minute
Product Specifications
Product Width | 5/64 to 3/4Â in 2 to 20Â mm |
Product Length | 5/64 to 1Â in 2 to 25Â mm |
Container Specifications
Bottle Height | 2-3/4 to 7-7/8Â in 70 to 200Â mm |
Bottle Diameter | 1-1/4 to 4Â in 32 to 100Â mm |
Bottle Opening | 1 to 4Â in 25 to 100Â mm |
Machine Specifications
Machine Weight | 137Â lbs 62Â kg |
Power | 110Â V 220Â V |
Frequency | 50/60Â Hz |
Phase | Single |
Power Consumption | 2 A |
Specification Notes
Note | Dimensions shown are for a standard machine. Each unit can run independently. The 1000 can be integrated into an automated packaging line and must be purchased with either a single or dual lane conveyor (this does not apply to the 202). All CVC equipment is covered by a one year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website. |
