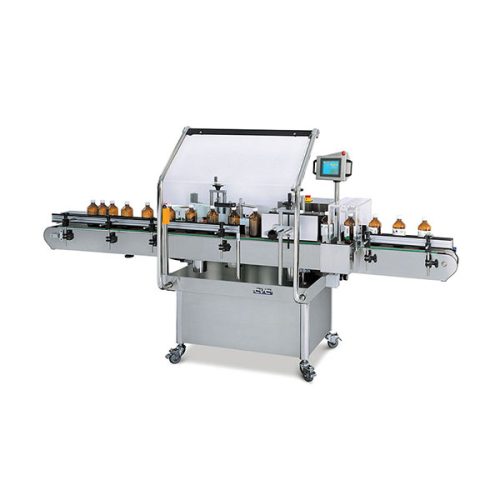

Model CVC302, High Speed Wrap Labeler
April 22, 2021

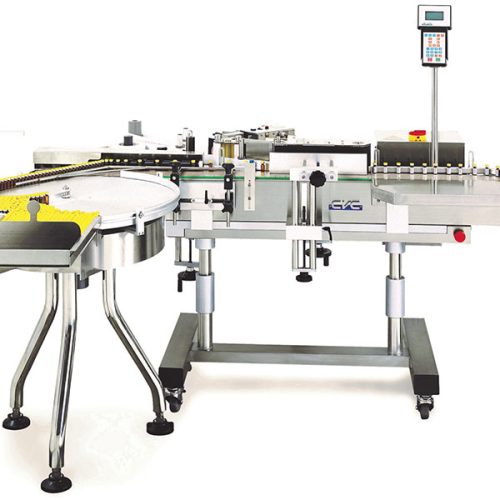

Model CVC330, Vial/Ampoule Wrap Labeler
April 22, 2021
Model CVC310, Gallon Wrap Labeler
The CVC310 Gallon Wrap Labeler is built to automatically apply pressure sensitive labels onto large diameter round containers. The 310’s extended wrap station includes a vacuum system for applying labels up to 17.5″ in length and can be ordered with a 10″ wide conveyor. The 310 is an ideal machine for contract packagers and manufacturers serving the nutraceutical, food, chemical, personal care, and household product markets.
All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Request Product Updates
Standard Features
- Self Set Auto Adjusting Control System
- Stainless Steel Frame on lockable casters
- Stainless Steel flat bed conveyor with 6″ wide table top chain
- 25-Key Hand Held Terminal with LCD Display
- Label head with up to ± 1/32″ accuracy
- 18″ long Integrated Wrap Station with vacuum assist
- Label Sensor for Paper or Opaque Labels
- Product Sensor with Opaque and Clear Bottle Mode
- Variable Speed Separator Wheel
- Capacity: up to 160 bottles per minute (BPM)
- ISO 9001:2000 Certified
Container Specifications
| Bottle Height | 1 to 12 in 25 to 305 mm |
| Bottle Diameter Bottle Diameter Dependent on conveyor width |
1 to 10 in 25 to 254 mm |
Label Specifications
| Label Width/Height1 | 3/8 to 9 in 10 to 229 mm |
| Label Length | 5/8 to 17-3/4 in 16 to 451 mm |
| Maximum Label Roll2 | 14 in 356 mm |
| Maximum Label Head Dispense Speed | 38 m/min |
1 Dependent on labeling head type.
2 Outside diameter with 3″ core
Machine Specifications
| Conveyor Width | 10 in (Standard)
6 in (Standard) |
| Conveyor Length Conveyor Length Extendable |
79 in (Standard) |
| Conveyor Bed Height | 36 in (± 2 in) (Standard) |
| Machine Weight | 210 kg |
Air/Electrical Requirements
| Power | 110 V (Standard) 208 V (Optional) |
| Phase | Single |
| Current | 8 A |
| Air Consumption Air Consumption Only required when using Lot/Date Printer |
4 ft3/min |
Available Options
| Printing Printing Hot Stamp (Lot/Date Coding) Print Area: 2-3/4 in (70 mm) W x 2-1/2 in (65 mm) H Type Sizes: 1.5 mm, 2.0 mm, or 2.5 mm Chase Size: 6 Lines of 13-22 Characters each Low Ribbon Sensor |
Hot Stamp (Lot/Date Coding) Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics) |
| Assemblies | Adjustable Tilt for Tapered Bottles Clear Label Sensor Custom Wrap Belts Feed Screw Infeed and Outfeed Conveyor Extensions Loading and Collecting Turn Tables Low Label Sensor (Factory Installed Only) Raised Sanitary Bed |
Specification Notes
| Note | Dimensions shown are for standard machine. Conveyor can be extended or length may vary based on options selected. This labeler can run independently or be integrated into an automated packaging line. |
